What are the details for connecting ducts to the diffusers?

0 votes
309 views
Which types of jonts and components used in it? ( in detail)
asked Nov 12, 2015 by munaf

1 Answer

0 votes

These details are showing the typical connection for duct to diffusers:

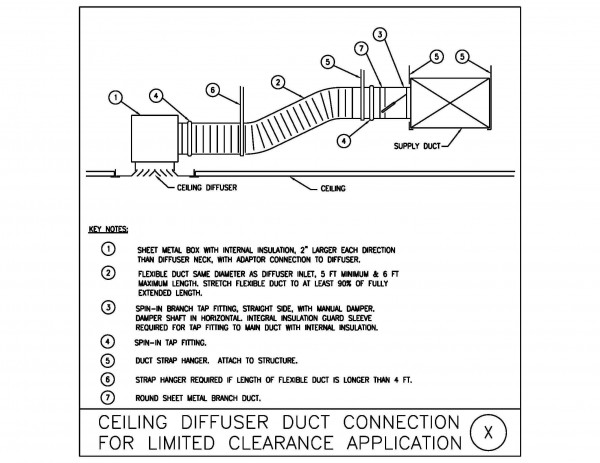

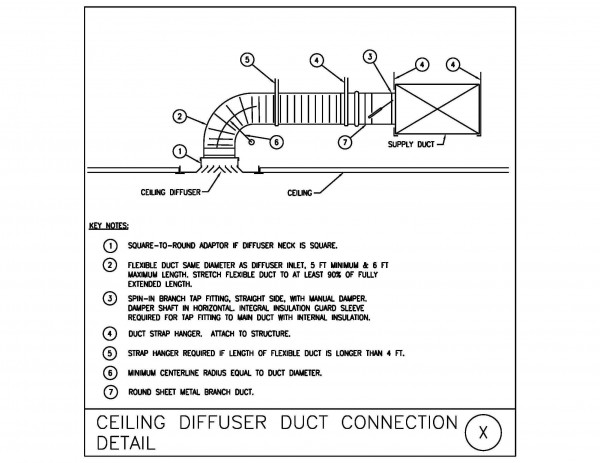

1- Celing diffusers

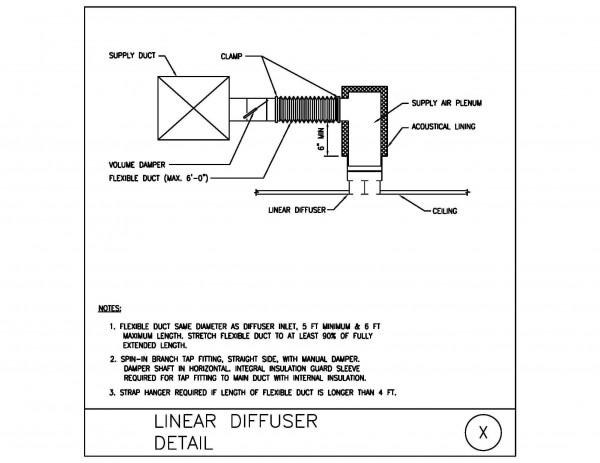

2- Ceiling or wall linear diffusers

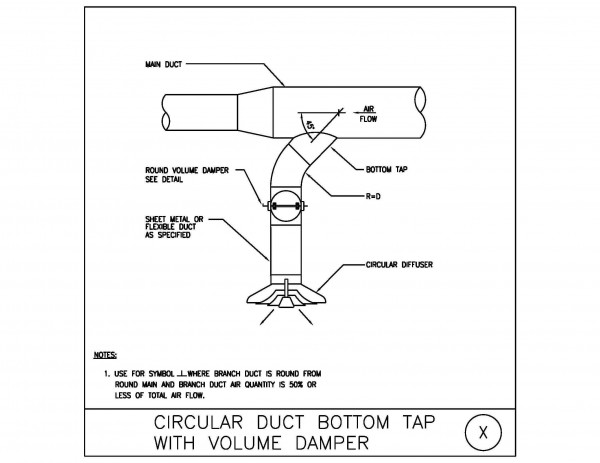

3- Celing round diffusers













answered Nov 15, 2015 by Matt Hall
